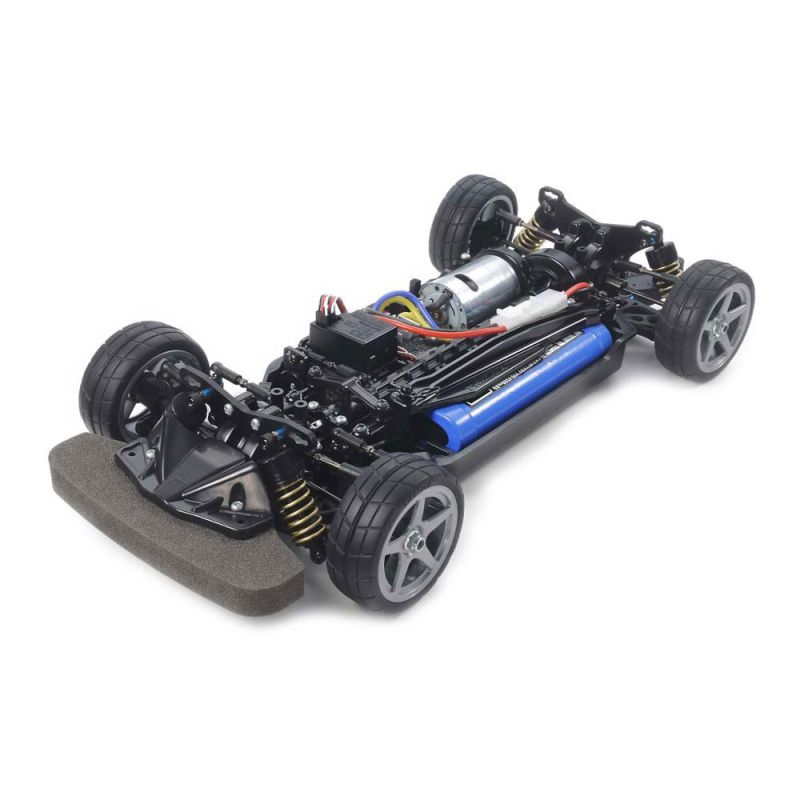

TAMIYA RC 1/10 TT-02 TYPE-S CHASSIS KIT

Tamiya RC 1/10 TT-02 Type-S Chassis Kit 4WD High-Performance On-Road Assembly Kit

Transform the proven TT-02 into a genuinely sporting 4WD platform with the Tamiya RC 1/10 TT-02 Type-S Chassis Kit. Developed as a performance-oriented evolution of the TT-02, this chassis introduces adjustable suspension geometry, rigid metal suspension mounts, long reversible suspension arms, turnbuckle links and full ball bearings to create a highly tuneable foundation for on-road racing.

Please note this is an unassembled kit requiring assembly; it ships as a build-it-yourself kit and does not arrive pre-built or ready to run.

The TT-02 Type-S uses CVA oil dampers mounted to specially designed 3mm FRP damper stays, with 3 degrees of rear toe-in for improved stability. Metal cup joints and drive shafts help reduce power loss, while die-cast aluminium hex wheel hubs and medium-narrow racing radial tyres give this chassis a much more competition-focused specification than the standard TT-02.

Special Features

• 1/10 scale 4WD high-performance on-road chassis assembly kit.
• Long reversible suspension arms provide expanded setup possibilities.
• Rigid metal suspension mounts enhance chassis response and include 3 degrees of rear toe-in.
• 3mm thick FRP front and rear damper stays support precise CVA oil shock positioning.
• Turnbuckle upper arms and steering linkage allow convenient camber and front toe adjustment.
• Metal cup joints and metal drive shafts improve drivetrain efficiency and durability.
• Die-cast aluminium hex wheel hubs provide a rigid wheel connection.
• Medium-narrow racing radial tyres are included.
• Full ball bearings reduce drivetrain friction.
• Includes a 540-size Torque Tuned motor.

What's in the Box

• Unassembled TT-02 Type-S chassis kit components
• Long reversible suspension arms
• 3mm thick FRP front and rear damper stays
• Metal suspension mounts
• Turnbuckle front and rear upper arms
• Metal cup joints and drive shafts
• Die-cast aluminium hex wheel hubs
• Medium-narrow racing radial tyres
• CVA oil dampers
• Full ball bearings
• 540-size Torque Tuned motor

What You'll Need

• 2-channel radio
• Steering servo
• ESC
• 7.2-7.4volt battery & battery charger
• Tamiya 190mm touring car body set
• Tamiya PS paint

Why You'll Love It

The TT-02 Type-S is a strong choice for drivers who have outgrown the basic TT-02 setup and want greater control over suspension geometry and handling balance. Its adjustable arms, metal suspension mounts, oil dampers and Torque Tuned motor make it an engaging platform for fast on-road driving and entry-level racing.
