TAMIYA
TAMIYA RC 1/14 SCANIA 770 S 8X4/4
$1,174.00
Product Information

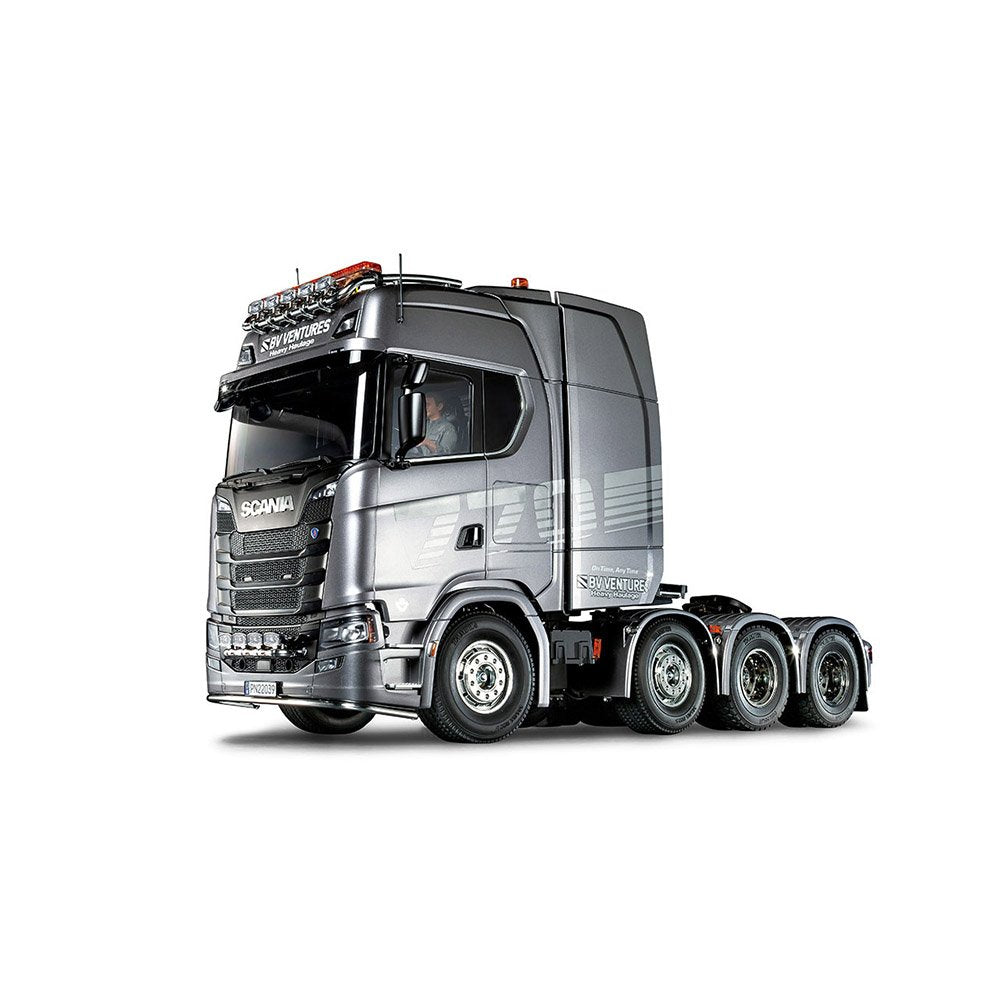

This R/C model assembly kit recreates the Scania 770 S 8x4/4, a double front-axle steering, double rear-axle drive eight-wheel heavy trailer head equipped with a 16.4-litre V8 turbo engine capable of 770hp, added in 2020 to the Swedish manufacturer Scania's top-grade S Series. The model has a highly realistic body with interior details, and a chassis featuring a ladder frame with aluminium side channels. Power is delivered to the two rear axles via a 3-speed transmission, while the two front axles are steered by a single servo; the second axle is a lift axle which can be manually raised and lowered.
What's in the Box:
- R/C model assembly kit
What you'll need:
- R/C system
- Servos x2

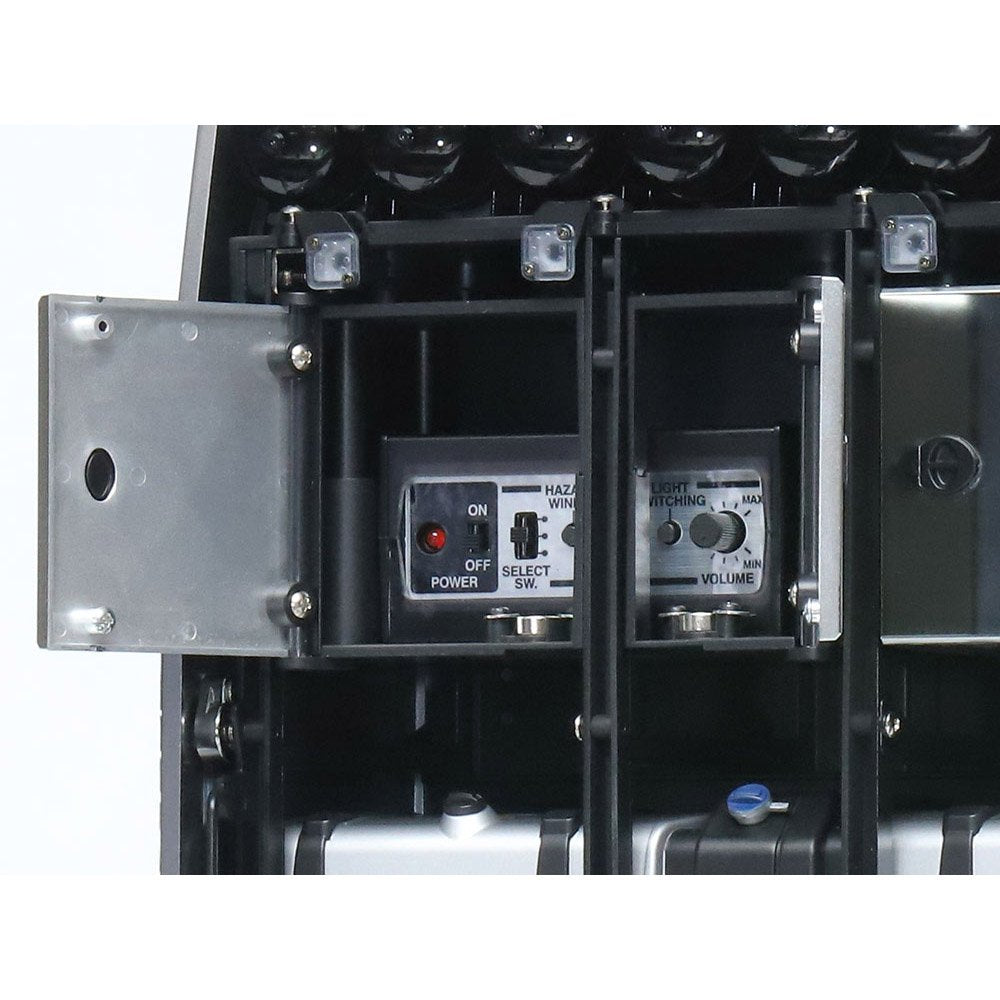

- ESC or Multi-Function Control Unit
- R6/AA/UM3 batteries for transmitter

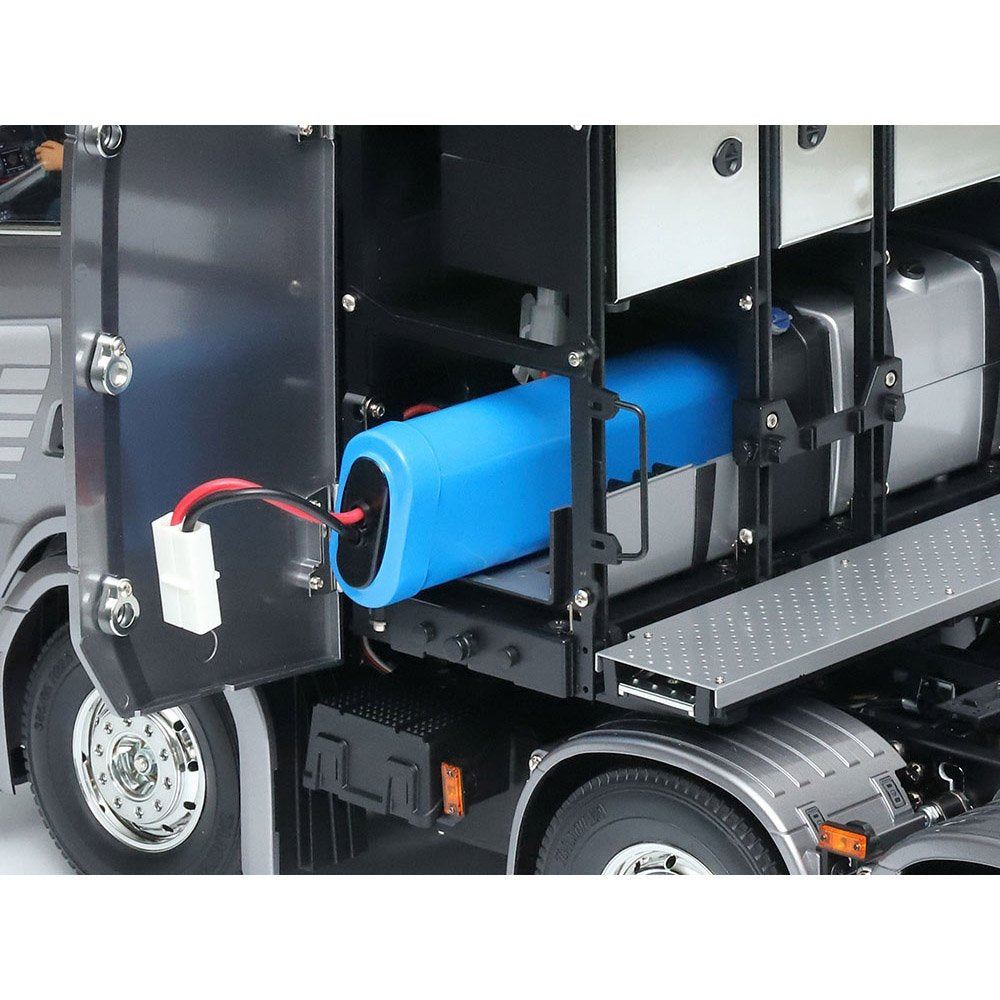

- Battery pack & charger
Specifications
Specifications:

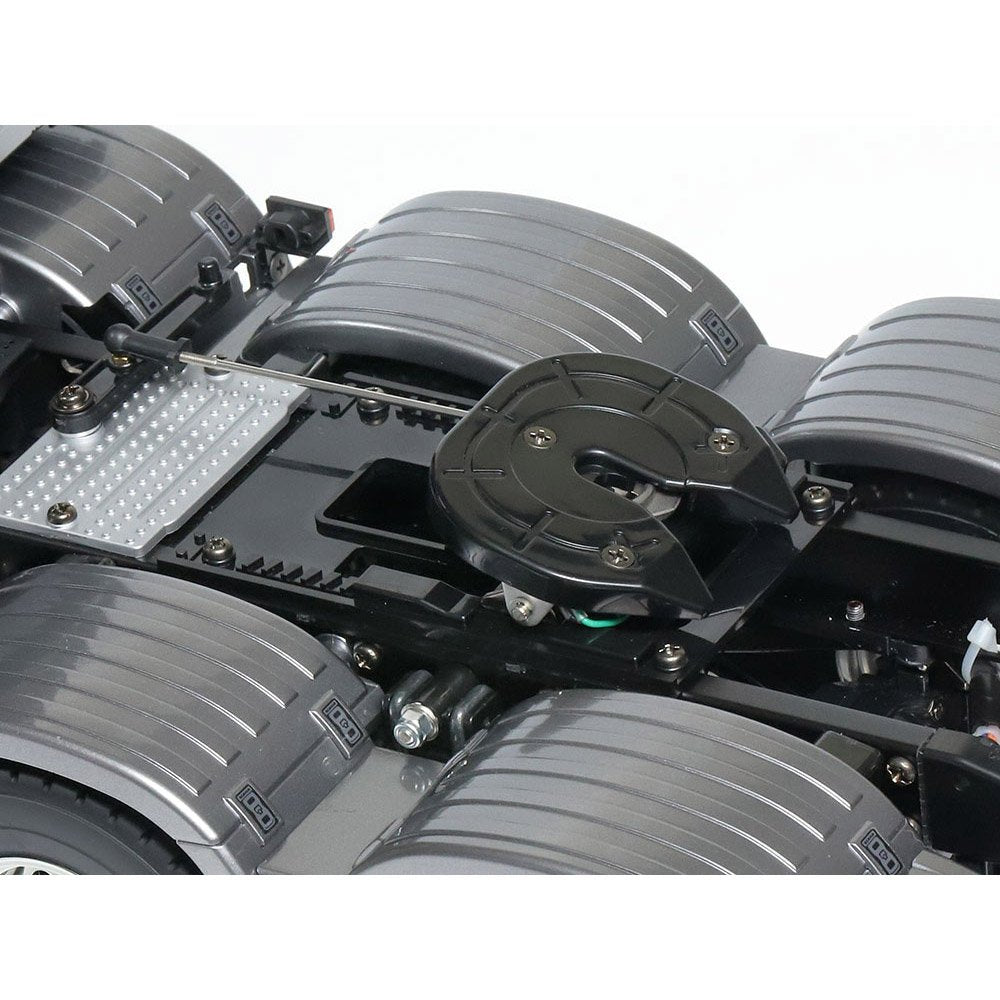

- Chassis: aluminium & polycarbonate resin ladder frame

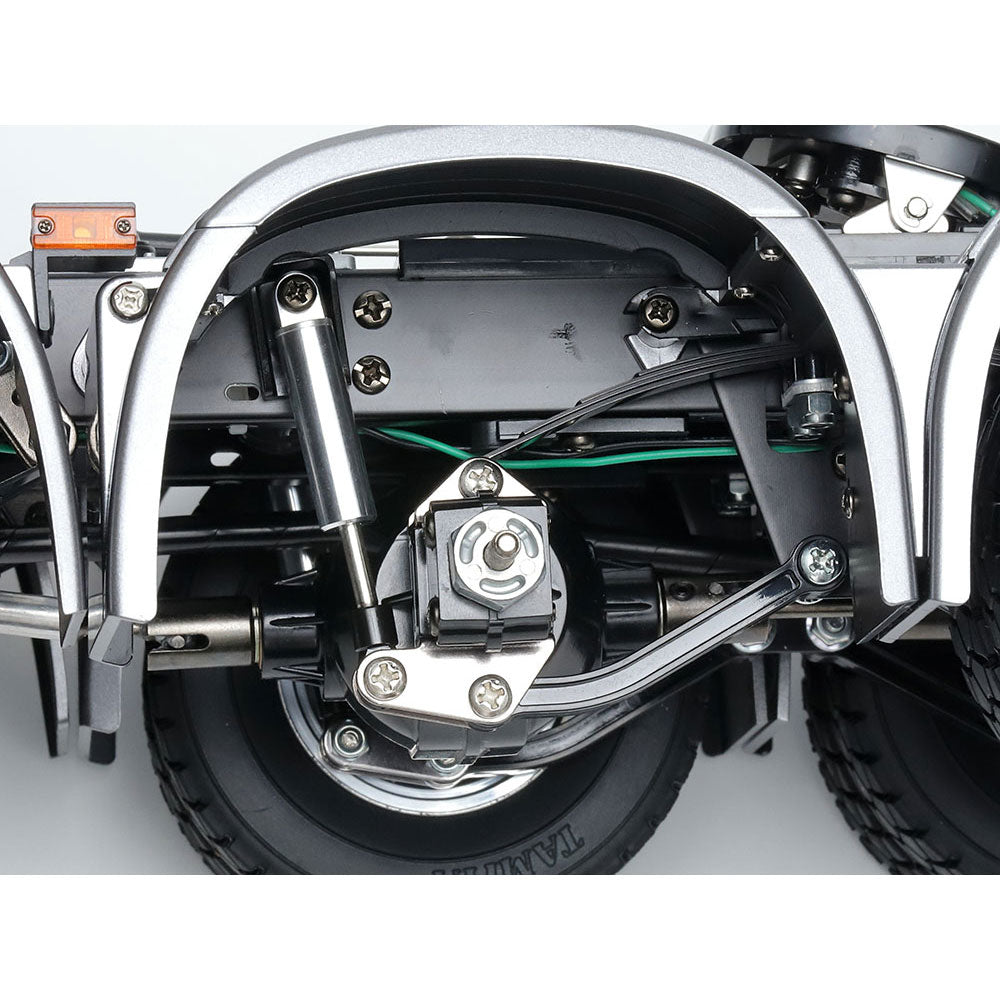

- Suspension: front/rear leaf spring rigid
- Caster angle (front/rear): 0°/0°
- Camber angle (front/rear): 0°
- Toe angle (front/rear): 0°
- Aluminium dummy dampers (front/rear)
- Dual rear axle drive

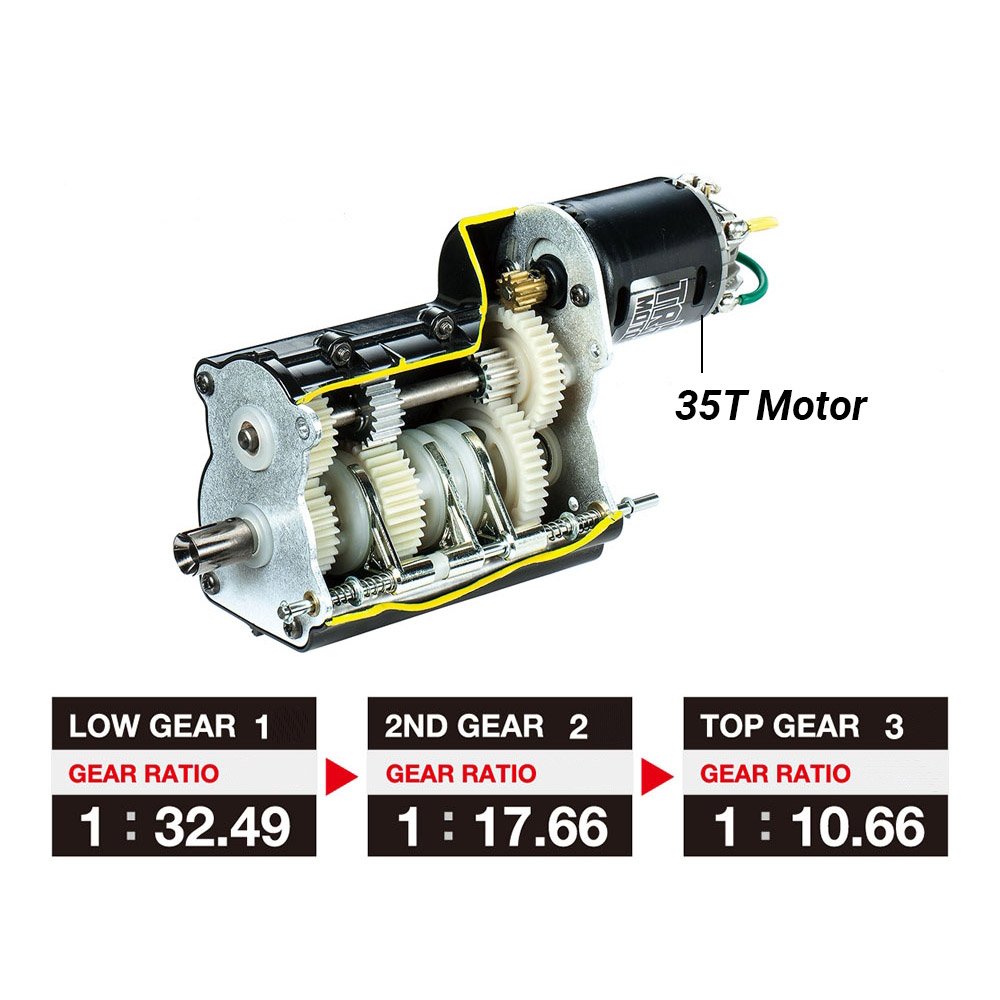

- 3-gear transmission (gear shifting operated via the transmitter)
- Gear ratio = (1st gear) 32.49:1, (2nd gear) 17.66:1, (3rd gear) 10.66:1
- 3-bevel differential gears
- Type 540 motor

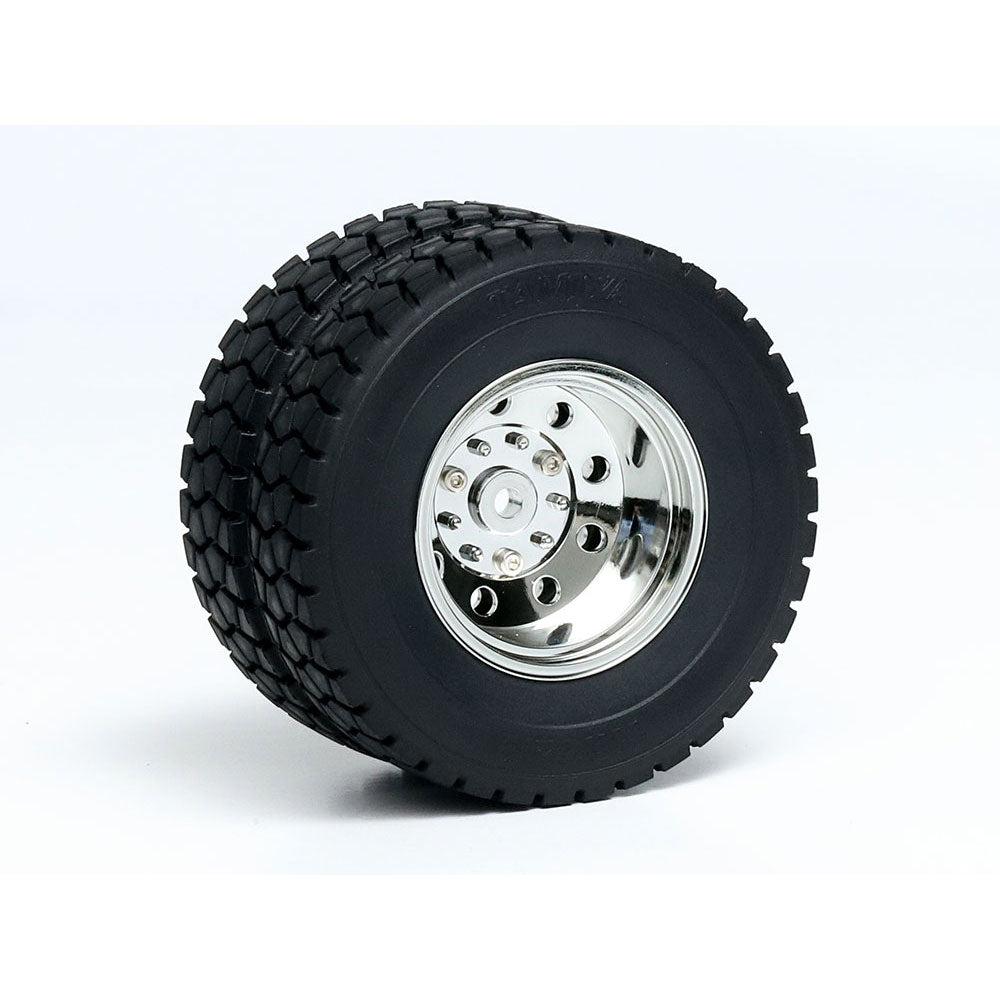

- Tyre width/diameter: 30mm/85mm (front); 22mm/84mm (rear)
- Tread: 155mm (front), 138mm (rear, double tyre)
Item Dimensions - Without Packaging:
- Length (cm) = 61.0
- Height (cm) = 32.0
- Width (cm) = 19.6
- Wheelbase (cm) = 18.3 + 10.9 = 10.3
