TAMIYA

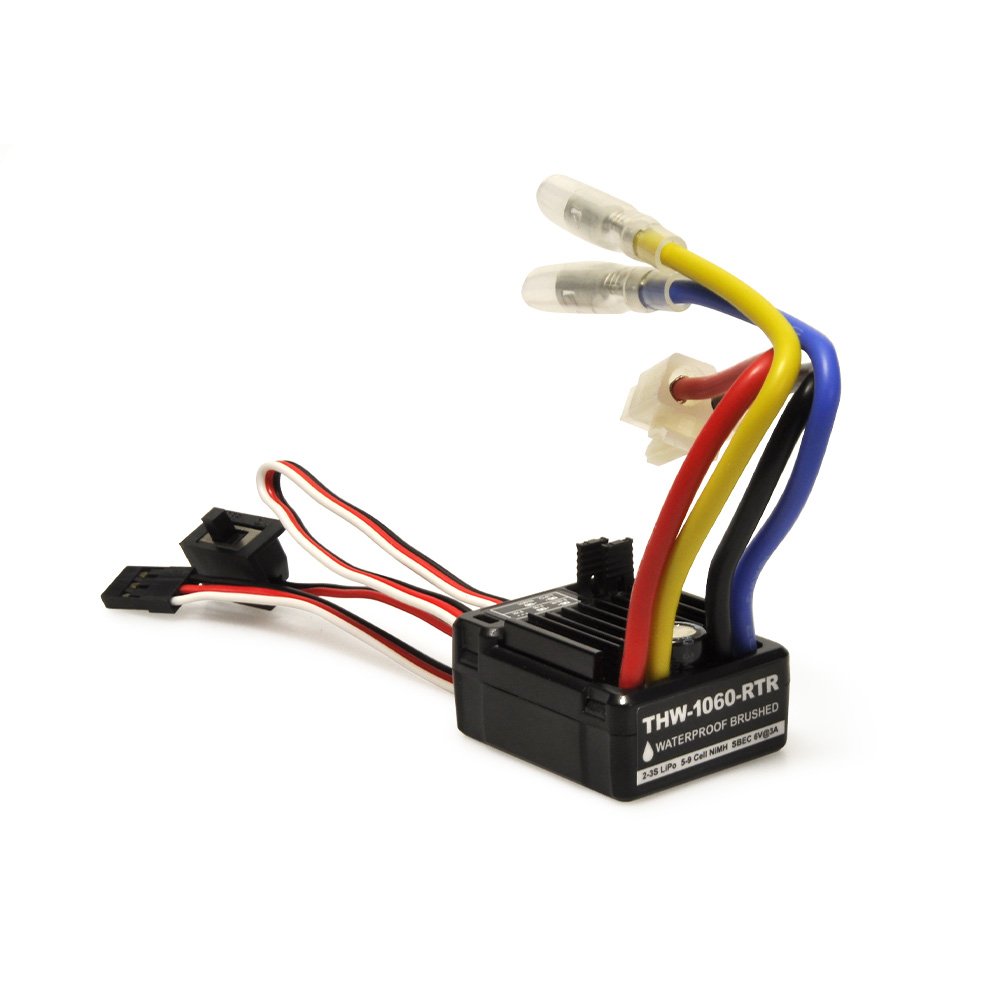

TAMIYA THW-1060-BRUSHED ESC
$52.65
SKU
17804097
SCALE
FTB
TYPE
MISCELLANEOUS
Product Information
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers, and tanks.
- Water-proof and dust-proof, suitable for all weather races.
- Small in size, with a built-in capacitor module.
- Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- ESC parameters are easy to set with jumpers.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection.
Specifications
Specifications:
- Model / SKU: THW-1060-RTR BRUSHED
- Fwd Cont. Current /Peak Current/ Resistance: 60A/360A/0.001Ω
- Rev Cont. Current /Peak Current/ Resistance: 30A/180A/0.002Ω
- Motor Type Supported: Brushed Motor
- Car Applicable: 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
- Suitable Battery: Brushed Motor Limit
- For 2S LiPo or 6 cell NiMH: 540 or 550 Size Motor: ≥12T, Or RPM<30000 @7.2V
- For 3S LiPo or 9 cell NiMH: 540 or 550 Size Motor: ≥18T, Or RPM< 20000 @7.2V
- BEC Output: 3A/6V (Switch Mode)
- PWM Frequency: 1KHz
- Size / Weight: 35.5(L)*32.18(W)*18(H) / 39g
- Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
- Cooling Fan: Not needed
- Input Connection: T-Plug
